H4 IR PTZ Camera

PTZ Control Meets IR Performance

2 MP
1 MP

TỔNG QUAN

The Avigilon H4 IR PTZ camera combines a powerful zoom lens with infrared (IR) technology to provide broad coverage and exceptional image quality, even in low-light settings. Choose either 1 MP with 45x zoom or 2 MP with 30x zoom. Both support up to 60 frames per second, and see up to 250 meters (820 feet) in complete darkness. An abrasion-resistant front lens and optional built-in silicone rubber wiper help to ensure clean, undistorted images in challenging weather conditions.

Patented Bandwidth-Saving Technology

Our HDSM SmartCodec™ technology optimizes compression levels for regions in a scene to help maximize bandwidth savings, helping to keep internet connectivity costs down.

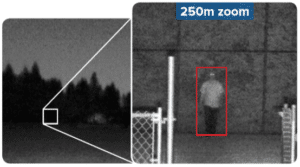

Powerful PTZ Control With Advanced IR Performance

Avigilon H4 IR PTZ cameras combine patented Avigilon self-learning video analytics with zoomable infrared (IR) technology to provide broad coverage and exceptional image quality in a range of lighting conditions and environments. Available in 1 MP (with 45x zoom) and 2 MP (with 30x zoom) camera resolutions, with a 250 meters (820 foot) IR illumination range.

TÍNH NĂNG

360° VIEW

360-degree views offer a cost-effective, easy-to-install solution providing broad coverage with fewer cameras

ADAPTIVE IR

Automatically adjusts IR beam width and exposure settings based on scene conditions to help maximize image quality

EXPANDABLE STORAGE

Slot for either SD or MicroSD memory prevents loss of recorded video during network or server interruptions

AUDIO CAPABILITIES

Available ports for external audio including sirens, microphones and/or loudspeakers for audio talk-down situations

H.264 AND H.265 HDSM SMARTCODEC™ TECHNOLOGIES

Optimizes compression levels for regions in a scene to help maximize bandwidth savings, helping to keep internet connectivity costs down

HIGH DEFINITION STREAM MANAGEMENT (HDSM)™ TECHNOLOGY

Provides maximum image detail while minimizing bandwidth usage, helping to keep internet connectivity costs down

INTEGRATED IR ILLUMINATORS*

Integrated IR LEDs provide uniform illumination, even in complete darkness * IR models are optional

LIGHTCATCHER™ TECHNOLOGY

Offers exceptional detail in areas with low lighting

ONVIF® COMPLIANT

Built on an open platform to allow integration with other security solutions

RELAY I/O CONNECTIONS

Configure input/output actions and alarms for fast event response

REMOTE FOCUS & ZOOM

Once mounted and aimed, the zoom level can be adjusted and image can be focused remotely

SELF-LEARNING VIDEO ANALYTICS

Recognize threats without predefined rules to help you detect, verify and act faster

WEATHER & IMPACT RATED

IP66/7 weather rating and IK10 impact rating for vandal resistance

WIDE DYNAMIC RANGE

Captures details in scenes with both very bright and very dark areas

ĐỊNH DẠNG NÉN HỖ TRỢ

H.264, MJPEG
